Satco LED HID Replacement ED28 Wattage Tunable 5000K EX39 Base 120-277v Bulb

SATCO NUVO LED HID Replacement Lamps are an energy efficient alternative to traditional HID lamps. This CCT selectable ED28 model is designed for use in type B ballast bypass applications, to make the transition to LED lamps easy. Enjoy long-lasting and low-maintenance lighting in warehouses, post top and area lights, gymnasiums and more.

Features:

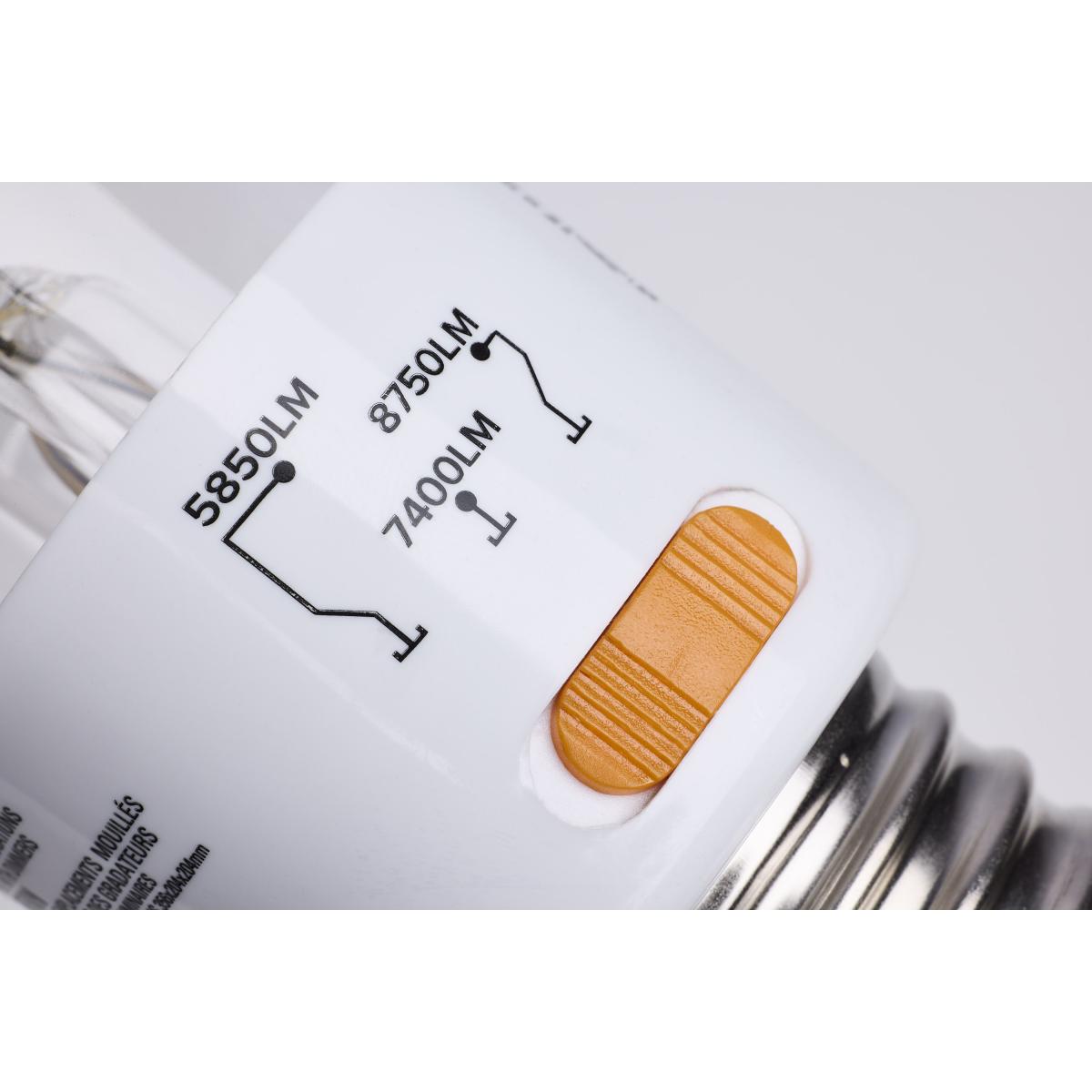

- Watts: 30W/38W/45W
- Volts: 120V-277V, Shape: ED28
- Base: Mogul Extended, Ansi Base: EX39
- Finish: Clear, Lumens: 5850L/7400L/8750L
- Temperature: Natural Light, CCT (Kelvin): 5000K
- Warranty: 5 Year Limited

General
Watts	30W/38W/45W
Volts	120V-277V
Shape	ED28
Base	Mogul Extended
Ansi Base	EX39
Finish	Clear
CCT (Kelvin)	5000K
Temperature	Natural Light
CRI	80
Lumens	5850L/7400L/8750L
Beam Spread	360
Dimmable	Yes-Dimmable
Rated Life	50000
Electrical
Operating Frequency	50/60Hz
Power Factor	>0.9
Operating Temperature	-30C (-22F) to 45C (113F)
Physical

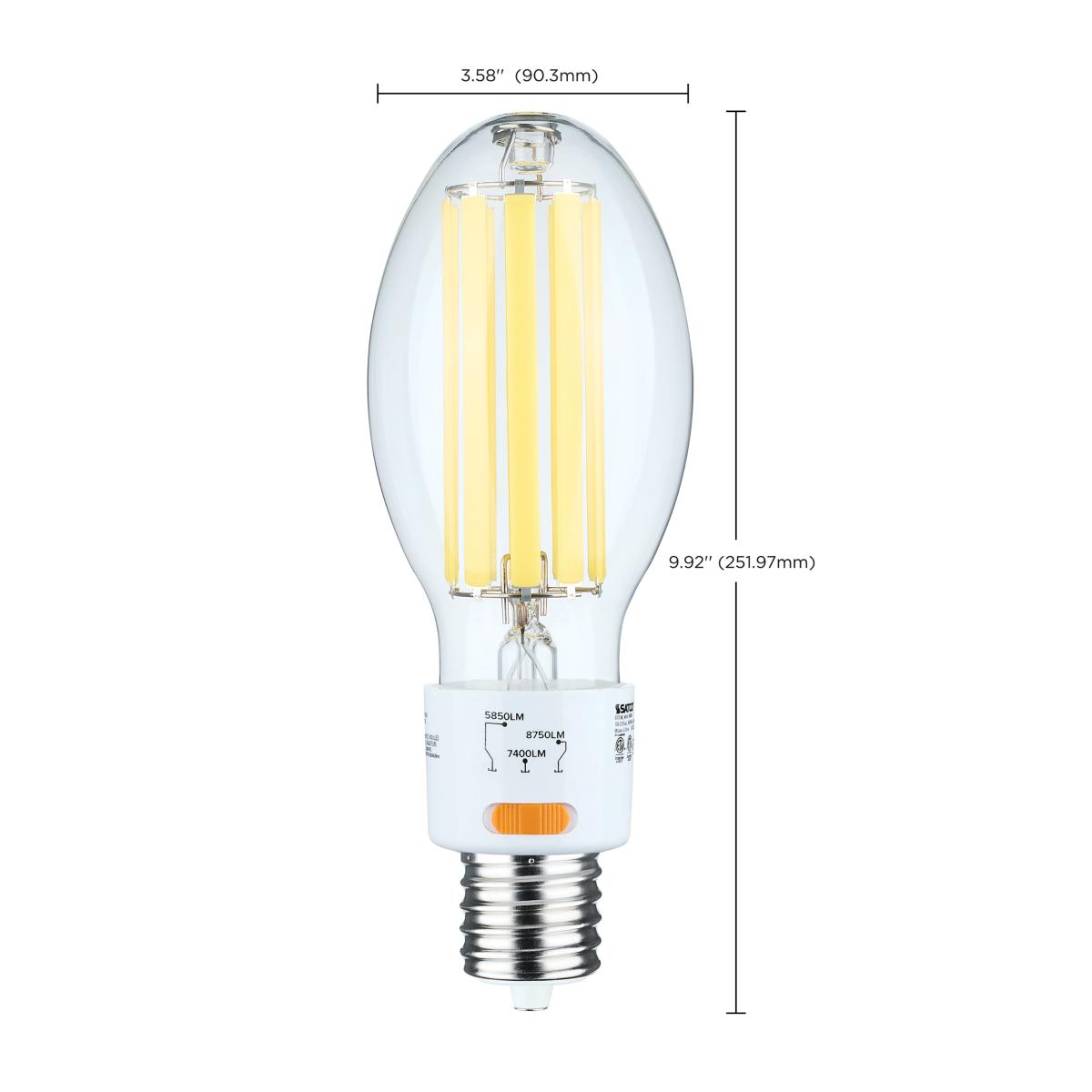

MOL	9.92
MOD	3.58
Housing Color	White
Weight (lb.)	0.8
Additional Information
Rated For Enclosed Fixture	Yes
Installation Notes	Not for use in vapor tight fixtures.
Warranty	5 Year Limited
Compliance
Safety Listing	cETLus - Listed
Location Rating	Wet
California Status	Lawful for sale
Title 20 / 24 Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S13196 Data Sheet
