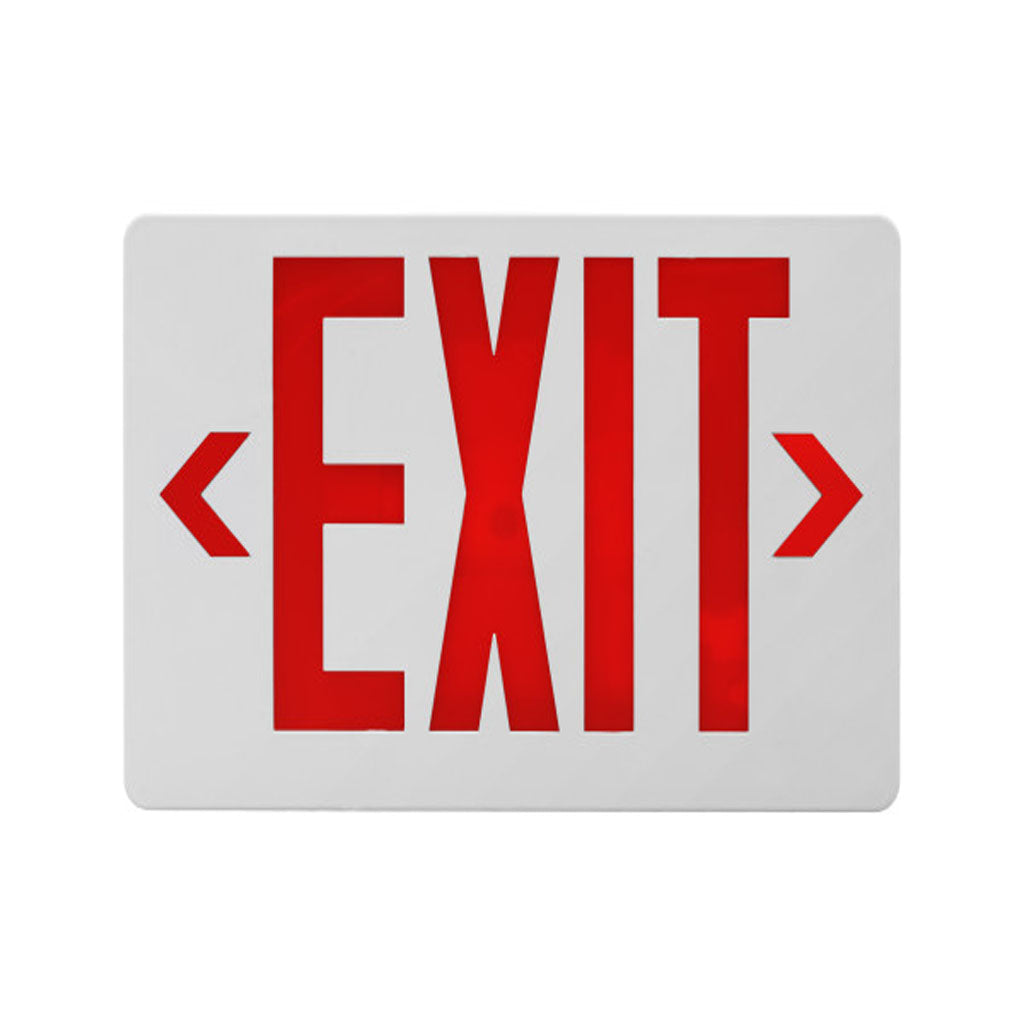

Nicor EXL4 Series LED Emergency Exit Sign Red Lettering

The NICOR EXL4 Series LED Emergency Exit Sign features a low-profile design with built-in battery backup. The slim, 1-in profile keeps the fixture lightweight and easy to install. it is constructed using a new injection-molded thermoplastic that is flammability rated (UL-94-V-0). The EXL4 includes an integrated Nickel-Cadmium battery to provide 90-minute emergency run-time that kicks on if the power goes out. The EXL4 uses only 1.6-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. It can be surface mounted to a wall or ceiling using the included mounting bracket with EZ quick-connect. The EXL4 includes an additional faceplate for the backside (if required) and removable chevron arrows. The EXL4 is Damp-Location rated and protected by NICOR 1-Year Limited Warranty.

Features:
- 90-minute emergency operation kicks on if the power goes out
- 1.2-Volt Nickel-Cadmium 1,000mAh battery
- UL94-V-0 rated injection molded thermoplastic ABS housing
- Dual-voltage for residential and commercial applications (120/277V)
- Universal junction box mounting to ceiling or wall
- Hardware and installation instructions included
- Available with red or green lettering
- Removable covers for directional chevron arrows
- UL 924 compliant
- UL Listed for damp-locations
- Protected by NICOR 1-Year Limited Warranty

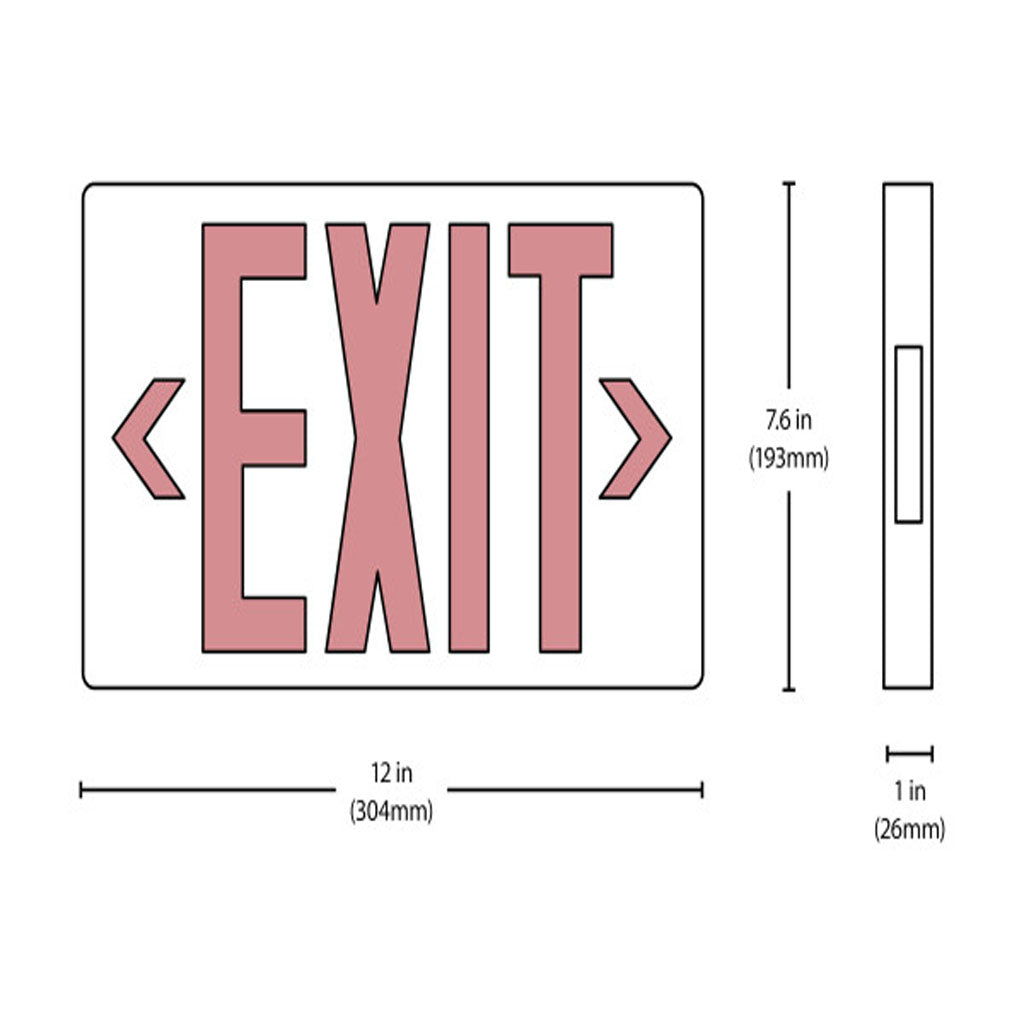

Size	12
Product Color	White, Red Letters
Finish	Textured
Light Source	LED
Wattage	1.6
Operating Temperature	5F to 104F (-15C to 40C)
Listings/Certifications	UL Listed, cUL Listed, UL 924 Listed, UL-94-V-0 Flame Retardant, BC (CEC Title 20), Damp-Location
Warranty	1 Year Limited

Manual:

EXL41UNVWHR2 Data Sheet
EXL41UNVWHR2 Data Sheet
