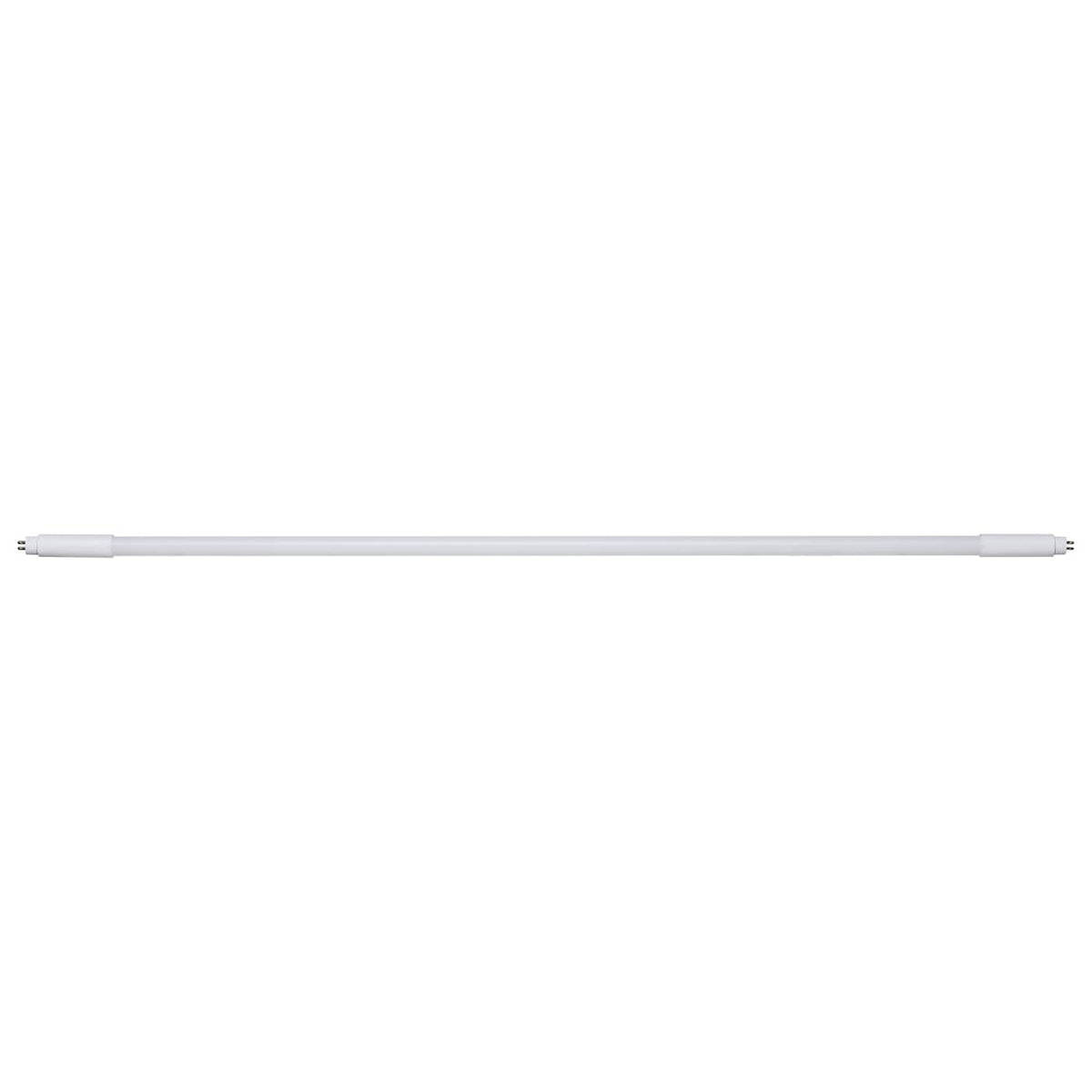

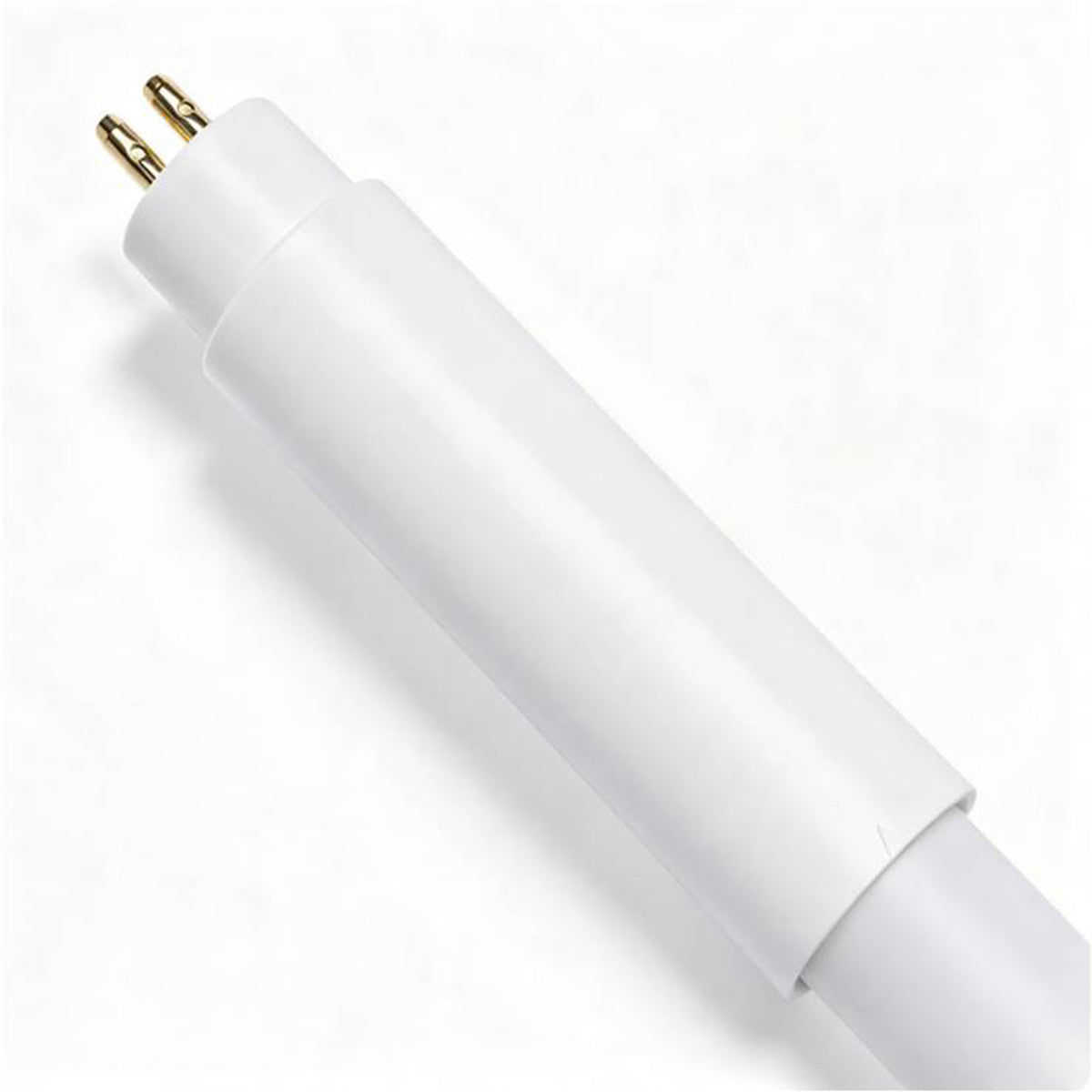

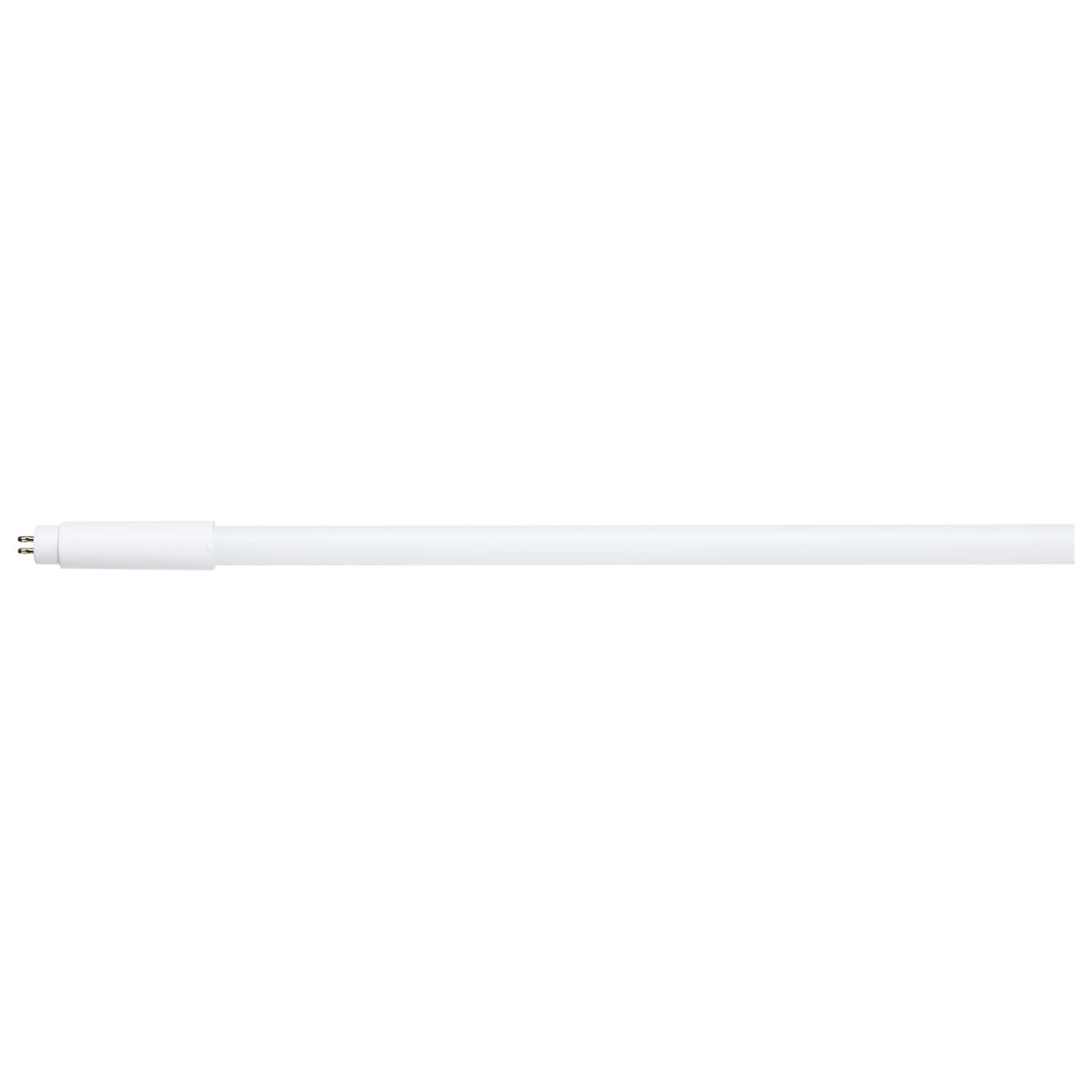

25Pk - Satco 24w 48-in T5 5000K CCT Omni Type A+B 120-277v LED Tube Lamp

Satco 24 Watt T5 LED 48 Inch 5000K CCT Omni Type A+B PET Coated Line Voltage Dimmable 120-277 Volt

Feature:
- Lamp Filament: LED
- Material: Plastic
- Fixture Type: Miniature
- Ballast Type: Type A/B
- Finish: Frost
- Product Technology: LED
- CCT (Kelvin Temp): 5000K
- Dimmable: Yes-Dimmable
- Hours Rated: 50000
- Color Temp: Natural Light
- Lumens: 3200L
- Volts: 120V-277V
- Watts: 24W
- Lamp Base: Miniature Bi Pin
- ANSI Base: G5
- Lamp Shape: T5
- Warranty: 5 Years Limited

General
Lamp Filament	LED
Material	Plastic
Fixture Type	Miniature
Ballast Type	Type A/B
Surge Protection	Built-in-surge protection - 0.5KV
CCT Selectable	No
Wattage Selectable	No
Finish	Frost
IOT Enabled	No
Power Factor	>0.9
Indoor / Outdoor	Indoor
Product Technology	LED
Electrical
CCT (Kelvin Temp)	5000K
Dimmable	Yes-Dimmable
Hours Rated	50000
Beam Angle (degree)	180
Color Temp	Natural Light
CRI	80+
Operating Frequency	50/60Hz
Operating Temp	-4F to +113F (-20C to +45C)
Abbreviation Name	24T5L48/850/G5/O/AB/CF/DU/D
Lumens	3200L
Volts	120V-277V
Watts	24W
Physical
Lamp Base	Miniature Bi Pin
ANSI Base	G5
Lamp Shape	T5
MOD	0.62
MOL	45.75
Additional Info
Warranty	5 Years Limited
Rated For Enclosed Fixture	Yes
UPC	045923199660
Compliance
Safety Listing	cRUus - Recognized Component;cULus - Certified;cULus - Classified
Location Rating	Damp
FCC Compliant	Yes
ROHS Compliant	Yes
Title 20	Exempt
T24/JA8 Compliant	No

Manual:

S19966*25 Data Sheet
